Event Target for SendGrid

This event Target receives CloudEvents and utilizes SendGrid to enable the creation and delivery of email messages via event data and event occurrence, respectively.

Prerequisite(s)

Consult the Secrets guide for more information about how to add the SendGrid API token as a secret.

Deploying an Instance of the Target

Open the Bridge creation screen and add a target of type SendGrid.

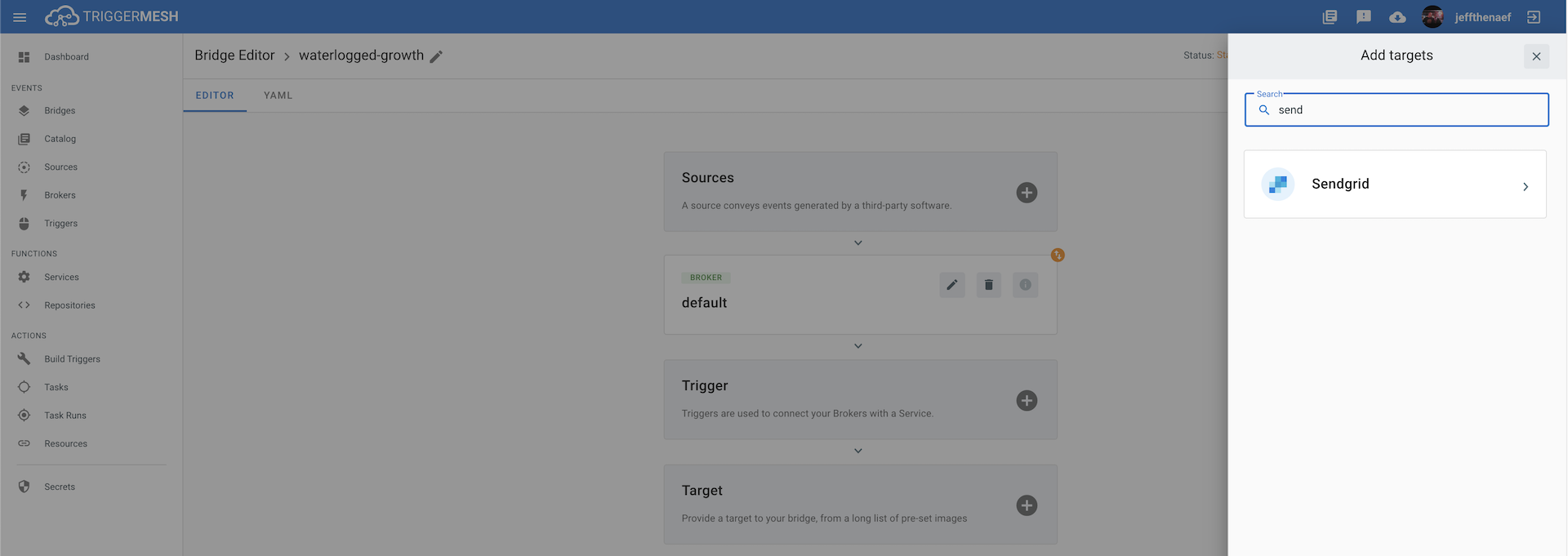

Adding a SendGrid target

In the Target creation form, provide a name for the event Target, and add the following information:

  • Default sender name: Define a default 'name' to be assigned in the From: section of the email to be created, if the received event does not contain a FromName property.
  • Default sender email: Define a default email address to be assigned in the From: section of the email to be created, if the received event does not contain a FromEmail property.
  • Default recipient name: Define a default name to be assigned in the To: section of the email to be created, if the received event does not contain a FromEmail property.
  • Default recipient email: Define a default 'email address' to be assigned in the To: section of the email to be created, if the received event does not contain a ToEmail property.
  • Default subject: Define a default subject to be assigned to the outgoing email to be created, if the received event does not contain a subject property.
  • API Secret: Reference to a TriggerMesh secret containing an API token for authenticating requests.

Note: If there is not a default value specified for all of the optional fields, the event received by that deployment MUST contain all of the information noted in the Event Types, except for Message, or the Target will fail.

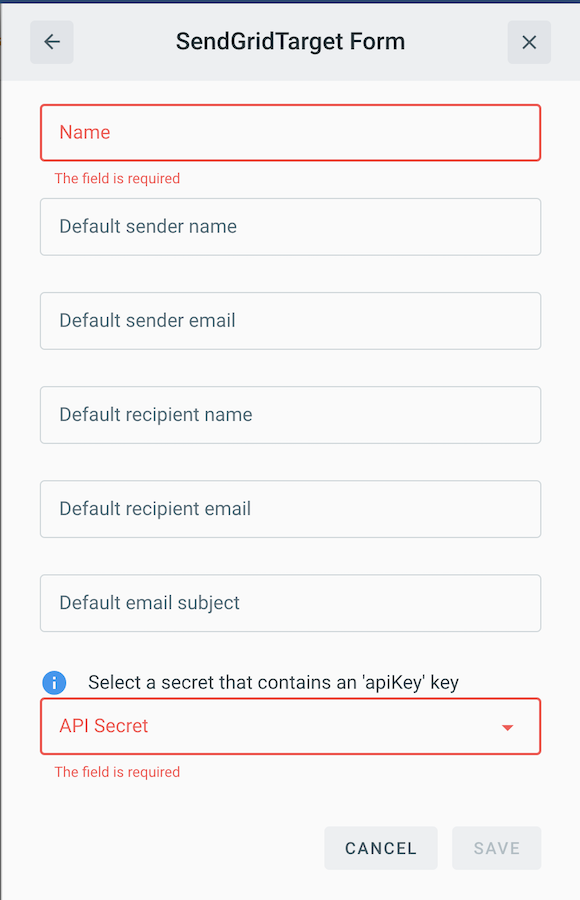

SendGridTarget form

After clicking the Save button, the console will self-navigate to the Bridge editor. Proceed by adding the remaining components to the Bridge.

After submitting the Bridge, and allowing for some configuration time, a green check mark on the main Bridges page indicates that the Bridge with a SendGrid event Target was successfully created.

Bridge status

For more information about using SendGrid, please refer to the SendGrid documentation.

Event Types

Depending on how the Target is to be used, defaults can be configured for all available parameters and the Target can accept arbitrary events. Or none of the defaults can be set and these parameters can be passed in at runtime via the event payload.

The SendGrid event Target accepts a JSON payload with the following properties that will overwrite their respective spec parameters:

Name Type Comment Required
FromName string Sender's name false
FromEmail string Sender's email false
ToName string Recipient's name false
ToEmail string Recipient's email false
Message string Contents of the message body false
Subject string Assigns a subject to the email false

When a Message property is not present, the entire cloud event is passed into the email body by default.

Note: If there is not a default value specified for all of the optional fields, the event received by that deployment MUST contain all of the information noted in the Event Types, save Message, or the Target will fail.

Example

An email sent from the SendGrid event Target with the Message parameter omitted will look as follows:

from: richard <richard@triggermesh.com>
to: bob <bob@gmail.com>
date:   Sep 12, 2020, 12:41 AM
subject: Hello World

Validation: valid Context Attributes, specversion: 1.0 type: dev.knative.samples.helloworld source: dev.knative.samples/helloworldsource id: 536808d3-88be-4077-9d7a-a3f162705f79 time: 2020-09-12T04:41:00.000610299Z datacontenttype: application/json Extensions, knativearrivaltime: 2020-09-12T04:41:00.006331845Z knativehistory: default-kne-trigger-kn-channel.midimansland.svc.cluster.local Data, { "event":"data"}
