Event Target for Slack

This event Target receives CloudEvents over HTTP and sends them to Slack using the Slack Web API.

Prerequisite(s)

  • Slack user that can manage applications
  • Pre-existing Slack App
  • Slack API token

Consult the Secrets guide for more information about how to add a Slack API token as a secret.

Configuring Your Slack App

  1. Create a new Slack App.
  2. Go to Basic Information > Add features and functionality and select the Permissions pane.
  3. Under Bot Token Scopes add chat:write.
  4. From the Install App menu follow steps to deploy to your workspace.
  5. Copy the Bot OAuth Access token, it should begin with xoxb-...

Deploying an Instance of the Target

From TriggerMesh, open the Bridge creation screen and add a Target of type Slack.

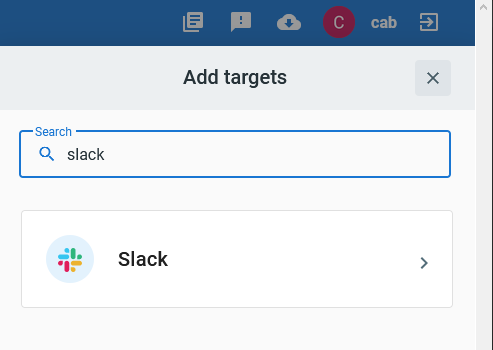

Adding a Slack Target

In the Target creation form, provide a name for the event Target, and add the following information:

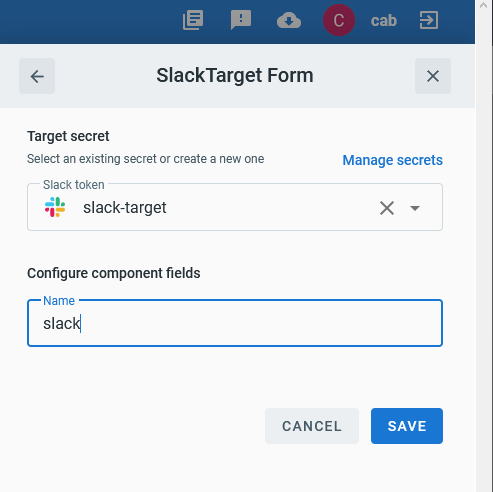

Slack Target form

After clicking the Save button, the console will self-navigate to the Bridge editor. Proceed by adding the remaining components to the Bridge.

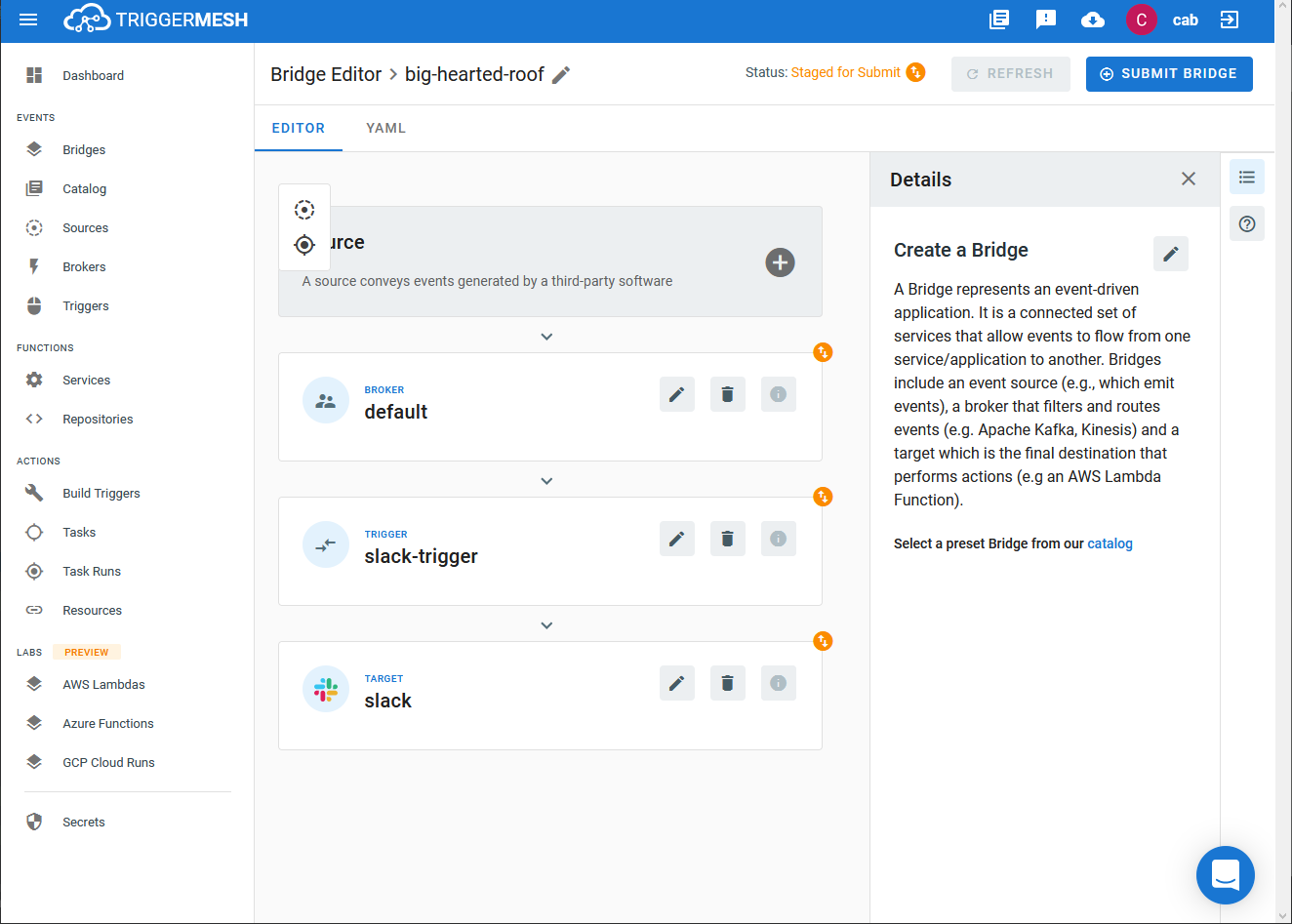

Bridge overview

After submitting the Bridge, and allowing for some configuration time, a green check mark on the main Bridges page indicates that the Bridge with the Slack Target was successfully created.

Bridge status

For more information about using the Slack API, please refer to the Slack API documentation.

Event Types

CloudEvents consumed by this Target must be of one of these types:

  • com.slack.webapi.chat.postMessage
  • com.slack.webapi.chat.scheduleMessage
  • com.slack.webapi.chat.update

These types expect a [JSON][ce-jsonformat] payload with the following properties:

Example

Post message:

curl -v http://slack-target:8080 \
 -X POST \
 -H "Content-Type: application/json" \
 -H "Ce-Specversion: 1.0" \
 -H "Ce-Type: com.slack.webapi.chat.postMessage" \
 -H "Ce-Source: awesome/instance" \
 -H "Ce-Id: aabbccdd11223344" \
 -d '{"channel":"C01112A09FT", "text": "Hello from TriggerMesh!"}'

Schedule message:

curl -v http://slack-target:8080 \
 -X POST \
 -H "Content-Type: application/json" \
 -H "Ce-Specversion: 1.0" \
 -H "Ce-Type: com.slack.webapi.chat.scheduleMessage" \
 -H "Ce-Source: awesome/instance" \
 -H "Ce-Id: aabbccdd11223344" \
 -d '{"channel":"C01112A09FT", "text": "Hello from scheduled TriggerMesh!", "post_at": 1593430770}'
